| Item | Specifications | Remark |

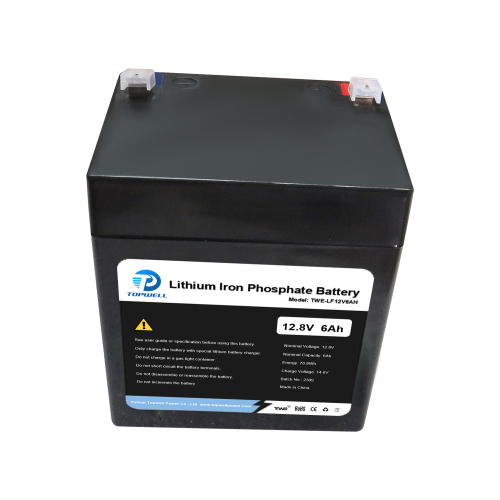

| Model No. | TWE-LF12V6AH | LiFePO4 Battery |
| Nominal Voltage | 12.8V | |
| Nominal Capacity | 6Ah | Standard discharge @0.2C after standard charge |
| Dimensions | 90x70x101mm | LxWxH |
| Cycle Life | ≥2000 times | ≥80% of the initial capacity |
| Housing Material | ABS | IP Rating: IP65 |
| Terminal Type | F2 | |
| Charge Cut-off Voltage | 14.6V | |
| Discharge Cut-off Voltage | 9.2V | 10V (recommemded) |
| Standard Charge Current | 3A | |
| Max Charge Current | 6A | |
| Standard Discharge Current | 3A | |
| Continuous Discharge Current | 6A | |
| Peak Discharge Current | 12A | ≤5s |
| Operation Temperature | Charge: 0℃~45℃, Discharge: -20℃~60℃ | |
| Storage Temperature | -20℃~25℃ | 12 months |
| -20℃~35℃ | 3 months | |
| -20℃~45 ℃ | 1 month | |
| Internal Resistance | ≤120mΩ | |
| Weight | Approx. 0.65kg | |
| Protection | Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc. |
